Using Multiple Representations to Choose a Model
Understanding data and mathematical models often requires more than just a single viewpoint. Utilizing multiple forms of data representation—such as graphs, tables, and equations—can offer a fuller, more nuanced picture of what the data is saying.
Each form of representation has its own strengths and limitations. For example, graphs are excellent for visualizing trends and relationships, but they may not capture specific numerical values well. Tables are great for detailing exact figures but may not readily reveal patterns or trends. Equations can express relationships between variables mathematically but may be difficult for some audiences to interpret.
Don’t rely solely on one form of data representation. Each has its own set of advantages and disadvantages, and using multiple forms can provide a more comprehensive understanding.
Combining these different forms can compensate for their individual weaknesses. For instance, a graph could be used to show the overall trend of a data set, while a table could provide the exact numerical values, and an equation could generalize these into a formula. This multi-faceted approach allows for a more robust analysis and can reveal insights that might be missed if only one form of representation is used.
- Climate Models: Scientists often use multiple models to predict climate change and compare them to arrive at the most likely scenarios.
- Financial Forecasting: In finance, different models like linear and polynomial regressions are used and compared to predict stock prices.
- Healthcare: In epidemiology, various models are used to predict the spread of diseases. These models are constantly compared and updated based on new data.
When analyzing complex data or models, don’t limit yourself to just one form of representation. The more angles you examine, the clearer the overall picture becomes.
In academic or professional settings, using multiple forms of representation can strengthen your argument or analysis. It shows that you’ve looked at the issue from multiple angles, enhancing your credibility.
How to Compare and Contrast Different Models
When you’re faced with multiple models that could potentially represent your data, it’s crucial to have a systematic way to compare and contrast them. This ensures that you select the most appropriate model for your specific needs. Here are some strategies to help you in this process:
Overlay Graphs
One of the most visual ways to compare models is to overlay their graphs on the same set of axes. This allows you to see how closely each model fits the data and whether one model might be a better fit in certain regions. For example, one model might capture the trend of the data better, while another might be better at capturing specific outliers.

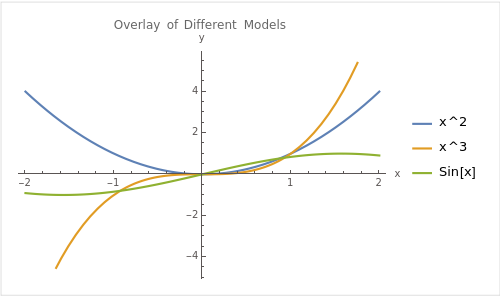

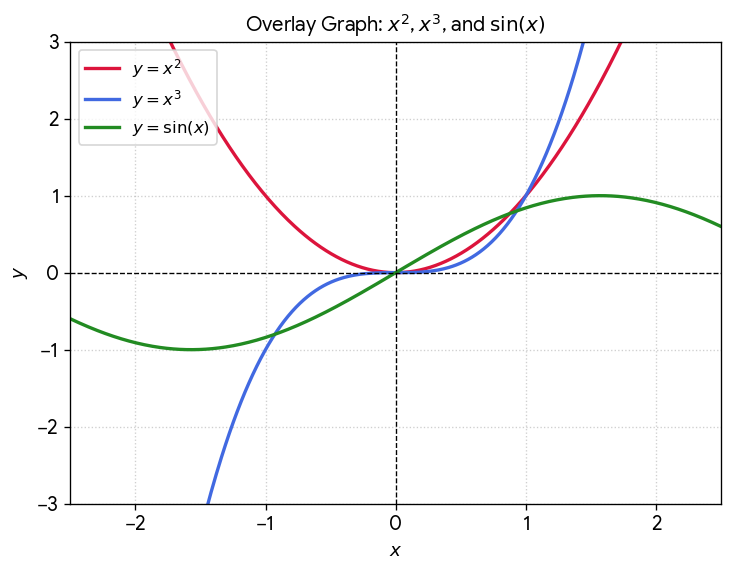

In this graph, three different functions are plotted on the same set of axes:
- [latex]x^2[/latex] (Quadratic function)
- [latex]x^3[/latex] (Cubic function)
- [latex]\sin(x)[/latex](Sine function)
By overlaying these graphs, you can easily compare how each model behaves across the same range of [latex]x[/latex]-values. This is particularly useful when you have real-world data that you’re trying to fit with a mathematical model. Overlaying the models like this allows you to visually assess which one might be a better fit for your data.
When overlaying graphs, make sure to use the same scale and units for each axis to ensure a fair comparison.
Tabulate Key Metrics
Another effective method is to create a table that lists key metrics or characteristics for each model. This could include things like mean squared error, R-squared values, or other statistical measures that indicate the goodness of fit. A table allows for a quick, side-by-side comparison and can be especially useful when dealing with multiple models.
Let’s consider three different mathematical models that predict the sales of a product over time. These models could be a linear model, a quadratic model, and an exponential model. To compare these models, you can tabulate key metrics and analyze equations.
| Model Type | [latex]R^2[/latex] Value | Mean Absolute Error | Long-term Prediction |
|---|---|---|---|
| Linear | [latex]0.85[/latex] | [latex]5.2[/latex] | Steady growth |
| Quadratic | [latex]0.92[/latex] | [latex]3.8[/latex] | Accelerating growth |
| Exponential | [latex]0.89[/latex] | [latex]4.1[/latex] | Exponential growth |
In this table, the [latex]R^2[/latex] value indicates how well the model fits the data. The Mean Absolute Error gives an idea of the average error in the predictions. The Long-term Prediction column gives a qualitative idea of what each model predicts for the future.
Don’t just rely on one metric when comparing models; consider multiple metrics to get a more rounded view of each model’s strengths and weaknesses. Make sure to include metrics that are relevant to the problem you are trying to solve.
Equation Analysis
If the models are represented by equations, you can compare the terms and coefficients to understand the differences in the relationships they propose. For example, if one model has a quadratic term while another is linear, this tells you that the models are capturing different types of relationships between the variables.
Let’s consider a scenario where we have three mathematical models that predict the monthly revenue of an online store. These models could be a logarithmic model, a sine model, and a linear model. To compare these models, you can analyze their equations.
- Logarithmic Model: [latex]R_1(x)=100ln(x)+500[/latex]
- Sine Model: [latex]R_2(x)=300\sin(2πx/12)+1000[/latex]
- Linear Model: [latex]R_3(x)=200x+800[/latex]
The logarithmic model suggests that the revenue increases logarithmically as the month number [latex]x[/latex] increases. This could be a good model if the store has reached a mature stage where growth is slowing down. This model assumes that there will be peaks and troughs in revenue throughout the year.
The sine model suggests a seasonal trend in revenue, peaking and dipping at regular intervals throughout the year. This model might be suitable for businesses with seasonal sales, like holiday or summer items. This model captures the idea that while revenue is still increasing, the rate of increase is diminishing over time.
The linear model suggests a steady increase in revenue as the month number [latex]x[/latex] increases. This could be a good model for a store that is relatively new and experiencing consistent growth. This model assumes that revenue will continue to increase at a constant rate.
When analyzing equations, consider the interpretability of each term. A model with fewer terms may be easier to interpret, even if it has a slightly worse fit.
Always consider the context and the specific questions you are trying to answer when comparing models. Some models may be better suited for certain types of analysis or for answering specific questions. For instance, a complex model might be necessary for scientific research but could be overkill for a simple business analysis.
